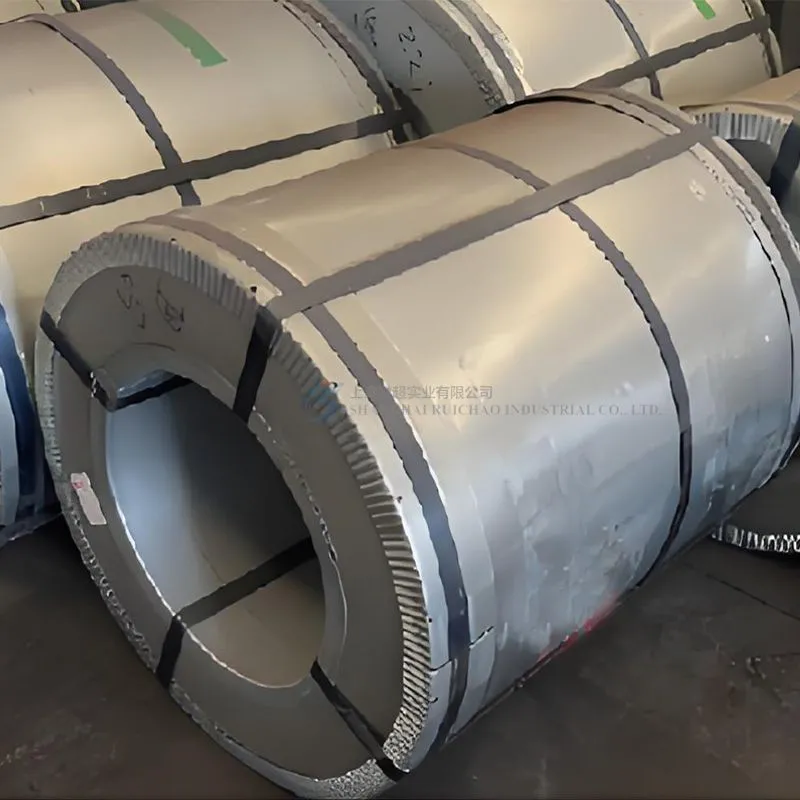

B35A270 is a high-efficiency non-oriented electrical steel produced by Baosteel, with a thickness of 0.35mm and a guaranteed maximum iron loss of 2.70 W/kg (P₁.₅/₅₀). Its high magnetic induction enables effective power transmission, while its low core loss enhances energy efficiency. Typically supplied as cold-rolled coils or strips, it is widely used in high-performance applications such as large and medium-sized generators and electric vehicle motors.
Specification Parameters
| Standard of electromagnetic properties | ||||||
| Grade | Thickness (mm) | Max.Core loss P55 (W/kg) | Min.Magnetic Polarization J5000 (T) | Min.Stacking Factor | Min.Number of Bends | Conventional Density(kg/dm³) |
| B35A270 | 0.35 | 2.65 | 1.64 | 0.95 | 2 | 7.65 |
| Typical electromagnetic properties | ||||||||||
| Grade | Thickness(mm) | Conventional Density (kg/dm²) | Specific Total Loss(W/kg) | Magnetic Polarization(T) | ||||||
| P1.0/5 | P1.50 | P10/50 | P | J1000 | J2500 | J5000 | J100 | |||
| B35A270 | 0.35 | 7.65 | 1 | 2.4 | 1.26 | 2.95 | 1.48 | 1.58 | 1.67 | 1.79 |
| Typical mechanical properties | |||||||||||
| Grade | Thickness(mm) | YieldStrength(MPa) | Tensile Strength(MPa) | Elongation(%) | Hardness | Number of Bends | Stacking Factor | ||||
| L | C | L | C | L | C | HV1 | L | C | |||
| B35A270 | 0.35 | 395 | 411 | 528 | 544 | 24 | 25 | 210 | 12 | 10 | 0.985 |
