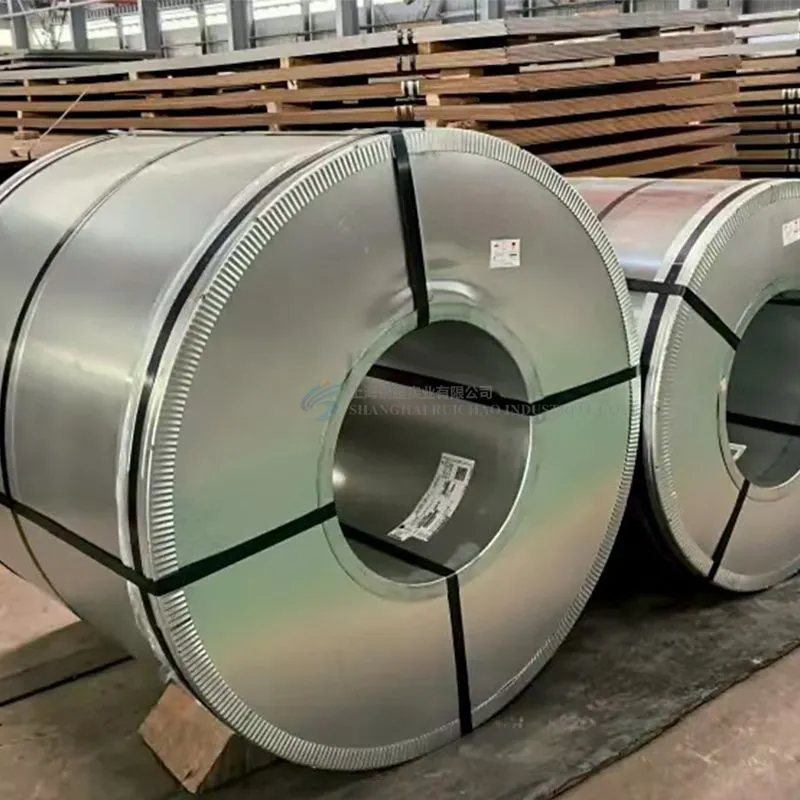

B50A1000 is engineered to deliver significant cost savings by providing an optimal balance of performance and affordability for industrial applications. It features functional magnetic properties with moderate iron loss for standard applications, excellent manufacturability for reduced production time and costs, and operational reliability for longevity in medium-duty systems. This grade is ideally suited for components where premium efficiency is not critical, such as medium-duty motors, generators, standard efficiency transformers, and other industrial electrical systems.
Specification Parameters
| Standard of electromagnetic properties | ||||||
| Grade | Thickness (mm) | Max.Core loss P55 (W/kg) | Min.Magnetic Polarization J5000 (T) | Min.Stacking Factor | Min.Number of Bends | Conventional Density(kg/dm³) |
| B50A1000 | 0.5 | 6 | 1.74 | 0.97 | 10 | 7.85 |
| Typical electromagnetic properties | ||||||||||
| Grade | Thickness(mm) | Conventional Density (kg/dm²) | Specific Total Loss(W/kg) | Magnetic Polarization(T) | ||||||
| P1.0/5 | P1.50 | P10/50 | P | J1000 | J2500 | J5000 | J100 | |||
| B50A1000 | 0.5 | 7.85 | 2.68 | 5.69 | 3.39 | 7.16 | 1.59 | 1.68 | 1.76 | 1.87 |
| Typical mechanical properties | |||||||||||
| Grade | Thickness(mm) | YieldStrength(MPa) | Tensile Strength(MPa) | Elongation(%) | Hardness | Number of Bends | Stacking Factor | ||||
| L | C | L | C | L | C | HV1 | L | C | |||
| B50A1000 | 0.5 | 241 | 243 | 366 | 370 | 40 | 40 | 113 | ≥20 | ≥20 | 0.99 |
