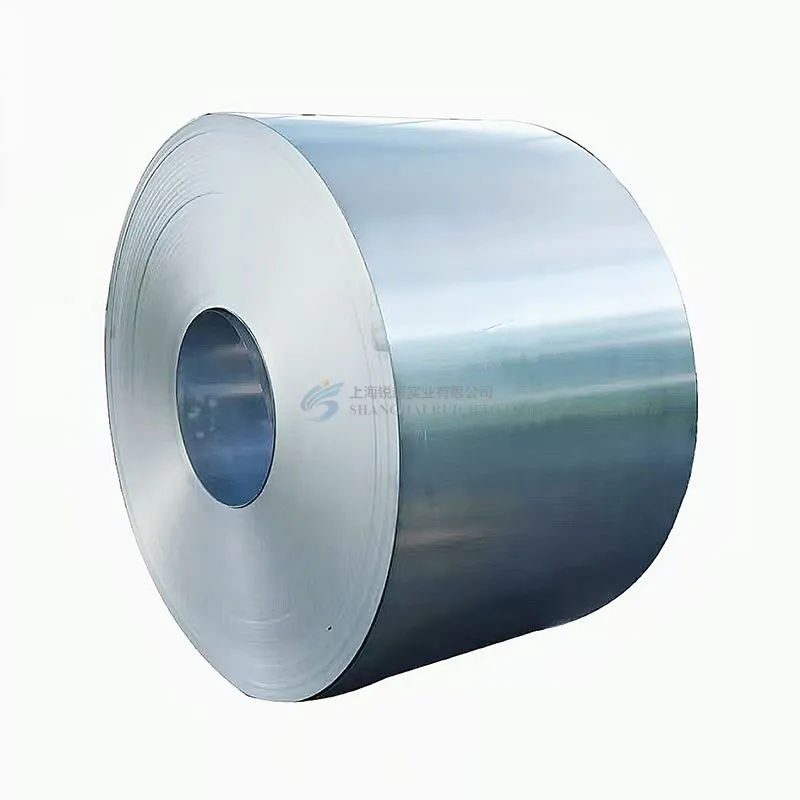

B50A270 is a 0.50mm thick electrical steel engineered for high-efficiency electromagnetic applications. It features low iron loss (≤2.70 W/kg at 1.5T/50Hz) to minimize energy waste and heat generation, alongside high magnetic permeability for effective power transmission. With reliable punchability and insulation compatibility, it is ideal for motors, transformers, and generators where energy savings, performance stability, and manufacturing efficiency are prioritized.
Specification Parameters
| Standard of electromagnetic properties | ||||||
| Grade | Thickness (mm) | Max.Core loss P55 (W/kg) | Min.Magnetic Polarization J5000 (T) | Min.Stacking Factor | Min.Number of Bends | Conventional Density(kg/dm³) |
| B50A270 | 0.5 | 2.65 | 1.64 | 0.97 | 2 | 7.6 |
| Typical electromagnetic properties | ||||||||||
| Grade | Thickness(mm) | Conventional Density (kg/dm²) | Specific Total Loss(W/kg) | Magnetic Polarization(T) | ||||||
| P1.0/5 | P1.50 | P10/50 | P | J1000 | J2500 | J5000 | J100 | |||
| B50A270 | 0.5 | 7.6 | 1.05 | 2.5 | 1.35 | 3.18 | 1.48 | 1.57 | 1.67 | 1.8 |
| Typical mechanical properties | |||||||||||
| Grade | Thickness(mm) | YieldStrength(MPa) | Tensile Strength(MPa) | Elongation(%) | Hardness | Number of Bends | Stacking Factor | ||||
| L | C | L | C | L | C | HV1 | L | C | |||
| B50A270 | 0.5 | 411 | 429 | 548 | 567 | 23 | 25 | 220 | 5 | 5 | 0.988 |
